EDGE AI PLATFORMS

Edge AI Platforms



ADLINK is committed to delivering artificial intelligence (AI) at the Edge with its architecture-optimized Edge AI platforms.



Featuring heterogeneous computing architecture, ADLINK’s Edge AI platforms integrate hardware acceleration in deep learning (DL) workloads, high performance per watt and per dollar, end-to-end connectivity to break down information silos, and industrial environmental compliance for 24/7 operation, generating actionable intelligence required to achieve operational improvements, performance boost, and efficiency gains in manufacturing, transportation, medical, gaming, defense, smart city, and retail applications.


AVA-5500 Series

Rugged, Fanless AIoT Platform with NVIDIA Quadro® GPU Embedded for Real-time Video/Graphics Analytics

  • 6th/7th Gen Intel® Core™ i7 Processors and NVIDIA Quadro® GPU MXM 3.1 Type A/B module on PCI Express x16

  • 8x M12 GbE (4x PoE), 4x RS-422, 4x USB 3.0, 1x DVI-I, 4x DisplayPort with lockable connectors

  • Multiple storage options: 2x 2.5" SATA 6.0 Gb/s drive bays, 1x M.2 2280 slot, 1x CFast socket

  • GNSS/3G/4G/WLAN support via 2x Mini PCIe slots and 2x USIM slots

  • 4x isolated DI and 4x isolated DO

  • MVB/CAN bus support through Mini PCIe add-on module

  • Wide range DC input: 24VDC, 36VDC, 72VDC and 110VDC

  • EN50155-compliant, rugged, fanless design for harsh operating environments

Inquriy

DLAP-3000-CF Series

Embedded System supporting MXM Graphics Module with 8th/9th Generation Intel® Core™ i7/i5/i3 in LGA1151 Socket

  • ADLINK MXM Graphics module support (Type A/B, up to 120W)

  • 8th/9th Gen Intel® Core™ i7/i5/i3, Celeron® processor

  • Dual SODIMMs for up to 64GB DDR4 non-ECC memory (dependent on CPU)

  • DisplayPort (2 from CPU, 4 from MXM)

  • 1x M.2 E key supporting 1630 or 2230 for Wi-Fi/Bluetooth module, 1x M.2 B key supporting 2242 or 2280 for SATA storage module

  • Reliable Molex type 12V DC-in connector

Inquriy

DLAP-3100-CF Series

Embedded System supporting MXM Graphics Module with 8th/9th Generation Intel® Core™ i7/i5/i3 in LGA1151 Socket

  • ADLINK MXM Graphics module support (Type A/B, up to 120W)

  • 8th/9th Gen Intel® Core™ i7/i5/i3, Celeron® processor

  • Dual SODIMMs for up to 64GB DDR4 non-ECC memory (dependent on CPU)

  • DisplayPort (2 from CPU, 4 from MXM)

  • 1x M.2 E key supporting 1630 or 2230 for Wi-Fi/Bluetooth module, 1x M.2 B key supporting 2242 or 2280 for SATA storage module 1x M.2 M key supporting 2242 or 2280 for SATA/PCIe x4 storage module

  • Reliable Molex type 12V DC-in connector

  • 1x Intel® i219-LM) and 5x Intel® i210-AT

Inquriy

DLAP-3200-CF Series

Embedded System supporting MXM Graphics Module with 8th/9th Generation Intel® Core™ i7/i5/i3 in LGA1151 Socket

  • ADLINK MXM Graphics module support (Type A/B, up to 120W)

  • 8th/9th Gen Intel® Core™ i7/i5/i3, Celeron® processor

  • Dual SODIMMs for up to 64GB DDR4 non-ECC memory (dependent on CPU)

  • DisplayPort (2 from CPU, 4 from MXM)

  • 1x M.2 E key supporting 1630 or 2230 for Wi-Fi/Bluetooth module, 1x M.2 B key supporting 2242 or 2280 for SATA storage module 1x M.2 M key supporting 2242 or 2280 for SATA/PCIe x4 storage module

  • Reliable Molex type 12V DC-in connector

  • 1x Intel® i219-LM and 3x Intel® i210-AT

  • 2x PCIe Gen3 x4 expansion slot for Full Height Half Length add on card, each slot is 25W power budget and additiotal Molex 4 pin power cable (12V/1.5A and 5V/2A) support

Inquriy

DLAP-4000 Series

Embedded System supporting FHFL dual-width PEG slot with 8th/9th Generation Intel® Core™ i7/i5/i3 in LGA1151 Socket

  • NVIDIA® Quadro® PEG card support

  • 8th/9th Gen Intel® Core™ i7/i5/i3 processor

  • Dual SODIMMs for up to 32GB DDR4 non-ECC memory (dependent on CPU)

  • 1x DVI, 1x HDMI, 1x DP (from CPU), additional display outputs from PEG cards

  • 1x Mini PCIe slot for Wi-Fi/Bluetooth or LTE module

  • 300W/500W Flex ATX PSU

Inquriy

DLAP-8000 Series

9th Gen Intel® Xeon®, Core™ i7/i5/i3-Based Compact Industrial GPU Workstation

  • NVIDIA® Quadro® PEG card support

  • 8th/9th Gen Intel® Core™ i7/i5/i3 processor

  • Dual SODIMMs for up to 32GB DDR4 non-ECC memory (dependent on CPU)

  • 1x DVI, 1x HDMI, 1x DP (from CPU), additional display outputs from PEG cards

  • 1x Mini PCIe slot for Wi-Fi/Bluetooth or LTE module

  • 300W/500W Flex ATX PSU

Inquriy

Pocket AI (EGX-TBT-A500)

NVIDIA Professional Graphics Solutions

  • NVIDIA RTX A500 GPU, 4GB GDDR6

  • 2048 NVIDIA CUDA® cores/ 64 NVIDIA Tensor Cores/ 16 NVIDIA RT Cores

  • 100 TOPS DENSE INT8 in inference

  • 6.54 TFLOPS Peak FP32 performance

  • NVIDIA CUDA X, RTX Software Enhancements

  • 106 x 72 x 25mm (less than 200cc) and 250 gram in weight

  • Auxiliary Power Input via USB PD

  • 40Gb/s bandwidth for Data Transfer via Thunderbolt 3.0+ USB Type-C


DLAP-201-JT2

NVIDIA® Jetson™ TX2 Edge AI Inference Platform

  • Deep learning acceleration with NVIDIA® Jetson™ TX2

  • Compact fanless system 148(W)x105(D)x50(H)mm

  • Wide temperature range from -20°C to 70°C

Inquriy

DLAP-211-JT2

Jetson Xavier™ TX2 NX Edge AI Inference Platform

  • Deep learning acceleration with NVIDIA® Jetson™ TX2 NX

  • Linux® Ubuntu operating system

  • Support wide operating temperature

  • Compact, durable and fanless design for 24/7 operation

  • Wide variety of industrial I/O ports and visual inferencing capabilities

  • Available with AWS IoT Greengrass service and Allxon remote device management

Inquriy

DLAP-211-JNX

Jetson Xavier™ NX Edge AI Inference Platform

  • Deep learning acceleration with NVIDIA® Jetson Xavier™ NX SOM

  • Linux® Ubuntu operating system

  • Support wide operating temperature

  • Compact, durable and fanless design for 24/7 operation

  • Wide variety of industrial I/O ports and visual inferencing capabilities

  • Available with AWS IoT Greengrass service and Allxon remote device management

Inquriy

DLAP-211-Nano

NVIDIA® Jetson Nano™ Edge AI Inference Platform

  • Deep learning acceleration with NVIDIA® Jetson Nano™ SOM

  • Linux® Ubuntu operating system

  • High performance yet energy efficient

  • Support wide operating temperature

  • Compact, durable and fanless design for 24/7 operation

  • Wide variety of industrial I/O ports and visual inferencing capabilities

  • Available with AWS IoT Greengrass service and Allxon remote device management

Inquriy

EOS-JNX Series

NVIDIA® Jetson Xavier™ NX Edge AI Vision Inference System

  • AI inference acceleration with NVIDIA® Jetson Xavier™ NX

  • Fanless system 187.5(W) x 149.5(D) x 55.25(H) mm

  • Wide temperature range from -20°C to 70°C

  • Expanded storage by microSD/M.2 PCIe SSD for larger application installation

  • Supports 12V to 24V DC-in

  • 4 PoE ports supporting 60W total power

  • Smart PoE software API supports power output control and power loss detection

  • Internal USB connector for software license dongle

Inquriy

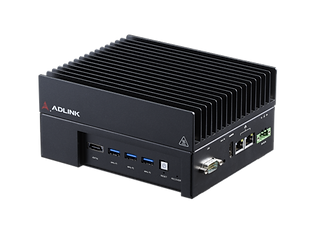

DLAP-401-Xavier

Edge AI Inference Platform by NVIDIA® Jetson AGX Xavier™

  • Deep learning acceleration with NVIDIA® Jetson™ AGX Xavier SOM

  • Linux® Ubuntu operating system

  • High performance yet energy efficient

  • Support wide operating temperature

  • Compact, durable and fanless design for 24/7 operation

  • Wide variety of industrial I/O ports and visual inferencing capabilities

  • Allxon integrated for remote device management

Inquriy

DLAP-411-Orin Preliminary

Edge AI Inference Platform by NVIDIA® Jetson AGX Orin™

  • NVIDIA® Jetson AGX Orin processing/inference engine 8-core Carmel Arm 64-bit CPU, 1792-Core Ampere GPU, 32 GB LPDDR5, 64 GB eMMC

  • Fanless compact inference platform

  • 4 GbE PSE Port(Optional), 4 USB 3.2, 1 OTG /Type C USB 3.2, 1 CAN bus (isolated) 1 COM(RS232/422/485), IO pin (32 x GPIO/ 2x UART,2 x I2C, 1 x SPI, 19 x GPIO).

  • 6 user defined LEDs, 1 Audio, 1 HDMI.

  • M.2 2230 E key (Wifi6), 3042/3052 B key (5G), 2242/2280 M key (nvme).

  • 24 V DC input, OCP.

  • Operating Temp: -20 to +50°C

  • Compact Size: 175(W) x 145(D) x 85(H) (mm)

Inquriy

RQX-580/58G

Performance Expandable Robotic Controller based on NVIDIA® Jetson™ AGX Xavier

  • Powerful AI computing for intelligent robotics development

  • Excellent performance per watt with power consumption as low as 30 W

  • Ruggedized, secure connectivity with locking USB ports

  • Comprehensive I/O for connecting a wide range of devices

  • Time synchronization with GMSL2 camera

Inquriy

RQX-59 SeriesPreliminary

Embedded Robotic Controller Powered by NVIDIA® Jetson AGX Orin ™ Module

  • Powerful AI computing for intelligent robotics development

  • Excellent performance per watt with power consumption as low as 40 W

  • Ruggedized, secure connectivity with locking USB ports

  • Comprehensive I/O for connecting a wide range of devices

  • Time synchronization for both GMSL1/2 and FPD-Link III camera

Inquriy
