Embedded Computers & IoT Gateways

Uç Bilgi Ä°ÅŸlem için Optimize EdilmiÅŸ Kompakt Fansız TümleÅŸik Bilgisayarlar



Matrix kompakt entegre fansız yerleÅŸik bilgisayarlar ve IoT aÄŸ geçitleri, uç yapay zeka ve uç bilgi iÅŸlem uygulamalarının yanıt verebilirliÄŸini ve dayanıklılığını artırmak için tasarlanmıştır. Matrix serisi, daha hızlı teÅŸhis için bilgi iÅŸlem yoÄŸun yüksek çözünürlüklü tıbbi görüntülemeyi hızlandırmak ve güvenli eriÅŸim kontrolü için yüz tanıma kapılarını etkinleÅŸtirmek için kullanılmıştır. Matrix IoT aÄŸ geçitleri, istiridye çiftliklerinin gereksiz yere kapanmasını önlemek, kamyon filoları için araç arıza sürelerini en aza indirmek ve elektrikli arabaların ÅŸarjını optimize etmek amacıyla uzaktan izleme ve kontrol için kullanılır.



Kompakt Matrix tümleÅŸik fansız yerleÅŸik PC'ler, endüstriler genelinde verimlilik, üretkenlik ve güvenlik geliÅŸtirmesi saÄŸlar. Performans ve dayanıklılık için tasarlanan kompakt Matrix tümleÅŸik fansız tümleÅŸik bilgisayarlar ve IoT aÄŸ geçitleri, uçta zamanında veri odaklı karar vermeyi mümkün kılmak için performans, kolay entegrasyon ve saÄŸlamlık sunar.


MXE-5600 Series

9th Gen Intel® Xeon®, Core™ i7/i3 and 8th Gen Intel® Core™ i5 Processor-Based Embedded Fanless Computer

  • 9th Gen Intel® Xeon®, Core™ i7/i3 and 8th Gen Intel® Core™ i5 BGA processor and Mobile Intel® CM246 Chipset

  • Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory

  • Rich I/O: 2x DP++, HDMI, 2x GbE, 6x COM, 8-ch DI, 8-ch DO, TPM2.0

  • 2x USB 3.1 Gen2, 2x USB 3.1 Gen1. 4x USB 2.0

  • Rich storage: 2x 2.5" SATA 6 Gb/s, CFast, M.2 2280

  • Embedded expansion: Mini PCIe, M.2 3042, 2x USIM

  • Front accessible I/O and adaptive Function Module v.2 option

Inquriy
Datasheet

MXE-5500 Series

6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer

  • Built-in ADLINK SEMA 3.0 management solution

  • 6th Gen Intel® Core™ i7/i5/i3 Processors and QM170 chipset

  • Single-side I/O with two SATA drive bays for easy drive swapping

  • 1x DVI-I, 2x DisplayPort, 4x USB 2.0, 4x USB 3.0, 4x GbE ports, 6x COM ports, and 8x isolated DI/O

  • Rich Storage Options, 2x 2.5" SATA III (6.0 Gb/s) bay, 1x M.2 2280 slot, 1x CFast socket

  • Versatile connection via 2x mPCIe slot and 2 x USIM slot

  • Rugged construction delivering fanless -20°C to 60 (70)°C operability (w/industrial SSD)

  • Compliant with railway EMC standard (EN50121)

MVP-5200 Series

 new

12/13th Generation Intel® Processor-Based Compact Modular Industrial Computers

  • 12/13th generation Intel® Alder Lake-S socket type processor (LGA 1700)

  • Microsoft® Windows® or Linux® Ubuntu operating system option

  • Rugged, fanless design for 24/7 operation

  • Wide-temp operation from -20°C to 60°C

  • Scalable with ADLINK AFM (Adaptive Function Module) slot, enabling fast application-specific access

  • Front accessible I/O ports, wall mounting supported

MVP-5100-MXM Series

Value Family 9th Gen Intel® Core™ i7/i5/i3® Processor-Based Embedded GPU/AI Platforms

  • 9th Gen Intel® Core™ i7/i5/i3 LGA processor

  • Dual SODIMMs sockets for up to 32GB DDR4

  • Abundant I/O: Up to 4x additional DP 1.4 from MXM, 2x DP++, DVI, VGA, 3x GbE, 3x COM, TPM2.0

  • 3x USB 3.1 Gen 1, 3x USB 2.0

  • Rich storage options: 2x 2.5" SATA, M.2 2280

  • Front accessible I/O and adaptive Function Module 2.0 options

  • Embedded slots for Mini PCIe, M.2 3042, 2x USIM

  • World leading embedded GP/GPU computing options built-in

MVP-5100 Series

Value Family 9th Generation Intel® Core™ i7/i5/i3 & 8th Gen Celeron® Processor-Based Embedded Fanless Computer

  • 9th Gen Intel® Core™ i7/i5/i3 & 8th Gen Celeron® LGA processor

  • Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory

  • Rich I/O: 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/ 8-ch DI/ 8-ch DO/ TPM2.0

  • 2x USB3.1 Gen2 + 1x USB3.1 Gen1 + 3x USB2.0

  • Rich storage:2x 2.5" SATA, CFast, M.2 2280

  • Embedded Expansion: Mini PCIe/ M.2 3042/ 2x USIM

  • Front accessible I/O and adaptive Function Module v.2 option

MVP-5000 Series

Value Family 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer (Code name: Skylake)

  • Dual-channel DDR4 SO-DIMM sockets support up to 32 GB memory

  • 6th Gen Intel® Core™ i7/i5/i3 processors and H110 chipset

  • Support for 2x independent displays with 1x VGA, 1x DVI, and 2x DisplayPort

  • 3x Intel® GbE ports with teaming function

  • 2x software-programmable RS-232/422/485 + 2x RS-232 ports

  • Front-mounted I/O for simplified installation and maintenance

  • Extremely cost-effective, high performance fanless system

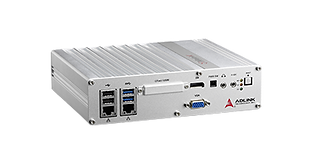

MXE-1500 Series

Intel® Celeron® N3160/ N3060 SoC Fanless Embedded Computer

  • Intel® Celeron® QC N3160/DC N3060 SoC processor

  • DDR3L 2x SODIMM up to 8GB

  • 3x independent displays: DP, VGA (Optional LVDS or DP)

  • Built-in ADLINK SEMA management solution

  • 3x GbE, 2x RS-232/422/485, 2x RS-232, 4x DI/ 4x DO

  • Optional: extra 2x RS-232/422/485, TPM2.0, amplifier

  • 2x USB 3.0, 5x USB 2.0, 1x 2.5" SATA, CFast, Mini PCIe, I2C

  • Last generation to support Windows 7 OS

MXE-1400 Series

Intel® Atom™ E3845 Processor-Based Fanless Embedded Computer

  • Quad-Core Intel® Atom™ E3845 processors

  • Single side I/O with easy access SATA drive bay

  • Compact 210 (W) x 170 (D) x 70 (H) mm housing

  • Built-in ADLINK SEMA management solution

  • Rugged construction delivering fanless -40°C to 70°C operability (w/industrial SODIMM & SSD) *

  • DVI-I+DisplayPort, 6x USB 2.0, 1x USB 3.0, 3x GbE, 6x COM ports, 16x isolated DI/O, 1x SATA-III (6.0 Gb/s) ports, 2x mPCIe slots

  • Ignition power input (with MXE-1401V)

MXE-210 Series

Intel Atom® Processor E3900 Family-Based Ultra Compact Embedded Platform

  • Equipped with Intel Atom® x7-E3950/x5-E3930 processors

  • Compact fanless design: 140(W) x 110(D) x 58(H) mm

  • 1x DisplayPort, 2x USB 2.0, 2x USB 3.0, 2x GbE ports, 2x COM ports (RS-232/422/485)

  • 2x mPCIe slots, 1x USIM slot, 1 x mSATA, 1x Micro SD slot

  • 1 x 2.5 " SATA SSD by storage kit or isolated 8x DI/ 8x DO (Optional)

  • eSIM support(by project) (Optional)

  • Built-in ADLINK SEMA management solution

Edge Computing için endüstriyel fansız yerleşik PC'ler



Genişletilebilir fansız yerleşik bilgisayarların Matrix serisi, uç yapay zeka ve uç bilgi işlem uygulamalarının yanıt hızını ve dayanıklılığını artırmak için tasarlanmıştır. Performans ve dayanıklılık için tasarlanan Matrix genişletilebilir fansız yerleşik bilgisayarlar, uçta zamanında veri odaklı karar vermeyi mümkün kılmak için performans, genişletilebilirlik, kolay entegrasyon ve sağlamlık sunar.

​

Matrix genişletilebilir fansız yerleşik bilgisayarlar, daha hızlı teşhis için bilgi işlem yoğun yüksek çözünürlüklü tıbbi görüntülemeyi hızlandırarak, kalite güvencesi için ürün kusurlarını tespit edip sınıflandırarak, güvenli erişim kontrolü için giriş noktalarında yüz tanıma uygulayarak, takip ederek endüstriler genelinde verimlilik, üretkenlik ve güvenlik geliştirmesi sağlar. tehlike önleme ve kontrol için işçilerin hareketi ve daha fazlası.


MXC-6600 Series

9th Gen Intel® Xeon®, Core™ i7/i3 and 8th Gen Intel® Core™ i5 Processor-Based Embedded Fanless Computer

  • 9th Gen Intel® Xeon®, Core™ i7/i3 and 8th Gen Intel® Core™ i5 Processor

  • Dual SODIMMs for up to 32GB DDR4

  • Rich I/O: 2x DP++, 1x HDMI, 2x GbE, 6x COM, 8-ch DI, 8-ch DO, TPM 2.0

  • 2x USB 3.1 Gen2, 2x USB 3.1 Gen1, 4x USB 2.0

  • Rich storage: up to 4 internal 2.5" SATA 6 Gb/s ports with RAID 0/1/5/10 support, CFast, M.2 2280

  • Embedded expansion: 1x Mini PCIe, 1x M.2 3042, 2x USIM

  • Flexible modular expansion with 2 or 4 slots

MXC-6400 Series

High-Performance 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer

  • 6th Generation Intel® Core™ i7/i5/i3 Processors and QM170 chipset

  • 2x DDR4 SO-DIMM sockets support up to 32GB memory

  • 1x PCI and 2x PCIe Gen3 x8 (or 1x PCIe Gen3 x16) slots

  • 2x Mini PCIe and 1x USIM slots

  • Support for 3 independent displays with 2x DisplayPort and 1x DVI-I ports

  • 3x Intel® GbE LAN ports with teaming function, Intel® iAMT 11.0

  • 2x 2.5" hot-swappable SATA III (6.0 Gb/s) trays on the front panel and 2x internal SATA III (6Gb/s) ports with RAID 0/1/5/10 support

  • Remote power on/off switch connector on the front panel

MVP-6200 Series

12/13th Generation Intel® Processor-Based Expandable Modular Industrial Computers

  • 12/13th generation Intel® Alder Lake-S socket type processor (LGA 1700)

  • Microsoft® Windows® or Linux® Ubuntu operating system option

  • Rugged design for 24/7 operation

  • Wide-temp operation from -20°C~60°C

  • Scalable with ADLINK AFM (Adaptive Function Module) slot, enabling fast application-specific access

  • Flexible modular expansion support

  • Front accessible I/O ports, wall mounting supported

MVP-6100-MXM Series

Value Family 9th Gen Intel® Xeon®/Core™ i7/i5/i3® Processor-Based Expandable GPU Workstation Platforms

  • 9th Gen Intel® Xeon®/Core™ i7/i5/i3 LGA processor

  • Dual SODIMMs sockets for up to 32GB DDR4 non-ECC/ECC

  • Abundant I/O: Up to 4x additional DP 1.4 from MXM, 2x DP++, DVI, VGA, 3x GbE, 3x COM, TPM2.0

  • 2x USB 3.1 Gen 2, 1x USB 3.1 Gen 1, 3x USB 2.0

  • Rich storage options: up to 4x 2.5" SATA, M.2 2280

  • Front accessible I/O and adaptive Function Module 2.0 options

  • Flexible functionality expansion: Expansion slots for standard PCIe and PCI card, Embedded slots for Mini PCIe, M.2 3042, 2x USIM

  • World leading embedded GP/GPU computing options built-in

  • Wide-temp operation from -20°C to 60°C

  • Scalable with ADLINK AFM (Adaptive Function Module) slot, enabling fast application-specific access

  • Front accessible I/O ports, wall mounting supported

MVP-6100 Series

Value Family 9th Generation Intel® Xeon®/Core™ i7/i5/i3 & 8th Gen Celeron® Processor-Based Expandable Computer

  • 9th Gen Intel® Xeon®/Core™ i7/i5/i3 & 8th Gen Celeron® LGA processor

  • Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory

  • Rich I/O: 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/ 8-ch DI/ 8-ch DO/TPM2.0

  • 2x USB 3.1 Gen2 + 1x USB 3.1 Gen1 + 3x USB 2.0

  • Rich storage: up to 4x 2.5" SATA, CFast, M.2 2280

  • Embedded Expansion: Mini PCIe/ M.2 3042/ 2x USIM

  • Front accessible I/O and adaptive Function Module v.2 option

  • Flexible modular expansion with 2 or 4 slots

MVP-6010/6020 Series

Value Family 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Expandable Fanless Embedded Computer

  • 6th Gen Intel® Core™ i7/i5/i3 processors with H110/Q170 chipset

  • Dual-channel DDR4 SO-DIMM sockets support up to 32GB memory

  • Support for 2 independent displays with 1 VGA, 1 DVI and 2 DisplayPort

  • MVP-6010: 1 PCIe Gen3 x16 and 3 PCI expansion slots

  • MVP-6020: 2 PCIe Gen3 x8 and 2 PCI expansion slots

  • 3 Intel® GbE ports with teaming function

  • 2 software-programmable RS-232/422/485 + 2 RS-232 ports

  • Extremely cost-effective, high performance Fanless system • Support up to 65W CPU with fanless operation

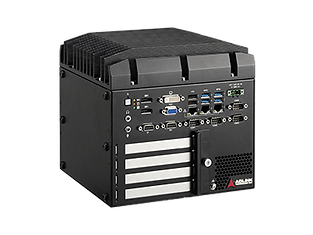

MVP-6000 Series

Value Family 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer

  • 6th Gen Intel® Core™ i7/i5/i3 processors and H110 chipset

  • Dual-channel DDR4 SO-DIMM sockets support up to 32 GB memory

  • Support for two independent displays with 1 VGA, 1 DVI, and 2 DisplayPort

  • 1 PCIe Gen3 x16 and 1 PCI expansion slots

  • 3 Intel® GbE ports with teaming function

  • 2 software-programmable RS-232/422/485 + 2 RS-232 ports

  • Front-accessible I/O for simplified installation and maintenance

  • Extremely cost-effective, high performance fanless system

MXC-2300

Intel® Atom™ processor E3845 Fanless Expandable Embedded Computer with PCI/PCIe Slots

  • Intel® Atom™ processor E3845 with 4C @1.91 GHz SoC

  • 2x DDR3L SO-DIMM, supporting up to 8GB memory

  • 2 PCI + 1 PCIe x4 or 3 PCI expansion slots

  • Built-in dual-port isolated CAN and 16-CH isolated DI and DO

  • 1 DisplayPort + 1 DVI-I

  • 2 Intel GbE ports with teaming function, 1 USB 3.0 + 4 USB 2.0 portsƒÜ

  • 2 software-programmable RS-232/422/485 + 2 RS-232 ports

  • Built-in ADLINK SEMA 2.2 (Smart Embedded Management Agent)
